Tracking OZ2SPACE, OZ9SPT & OZ9VST
The APRS tracker used is developed by OZ1EKD and OZ7HVO.
The hardware is a transmit only tracker build for the challenging conditions onboard MV Sputnik.

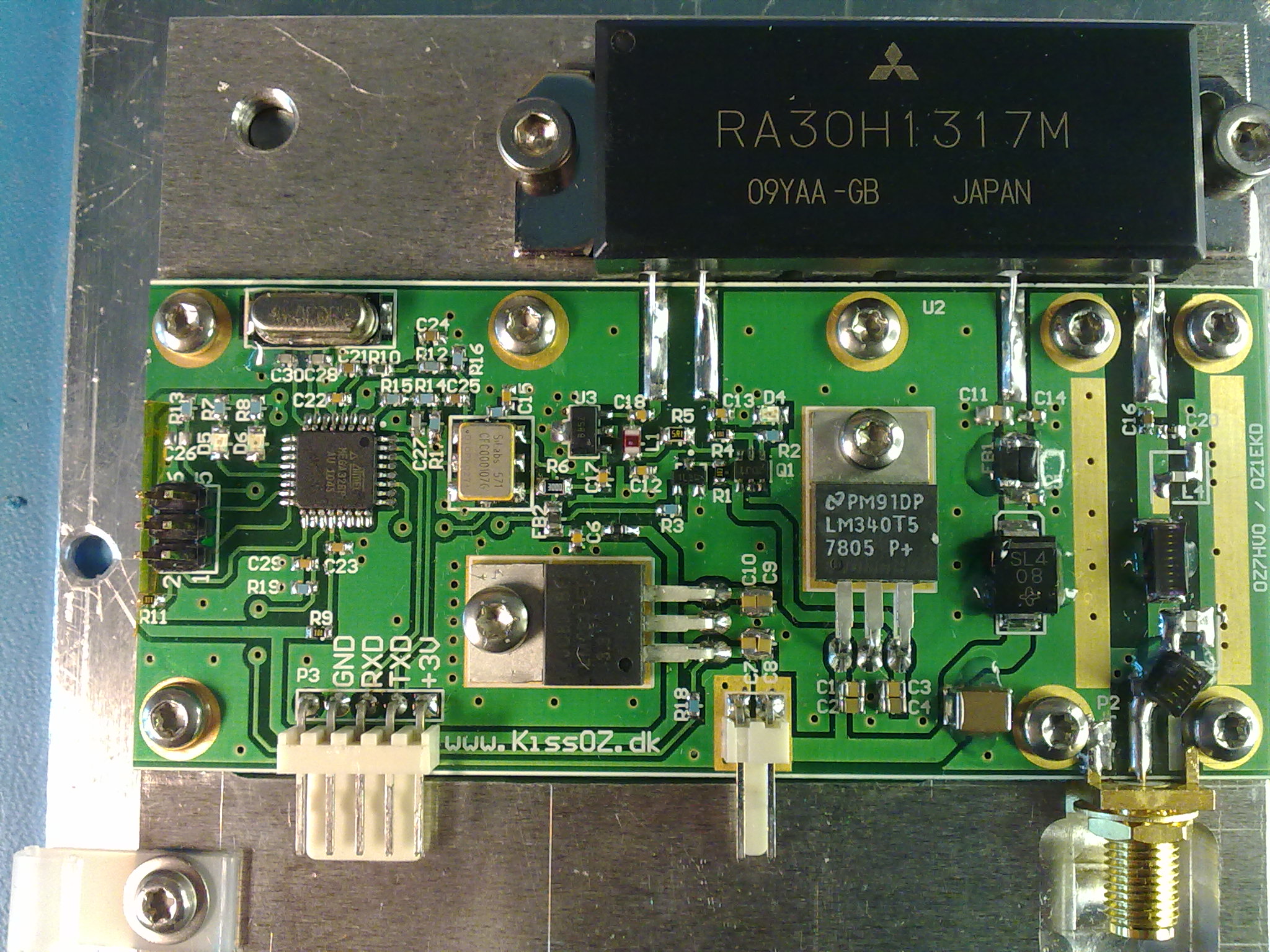

Version 1 PCB:
The hardware is a transmit only tracker build for the challenging conditions onboard MV Sputnik.
Version 1 PCB:

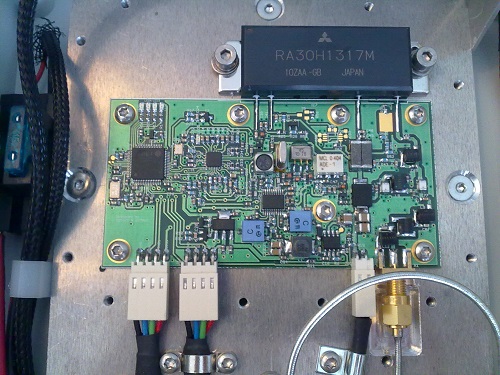

Version 2 PCB

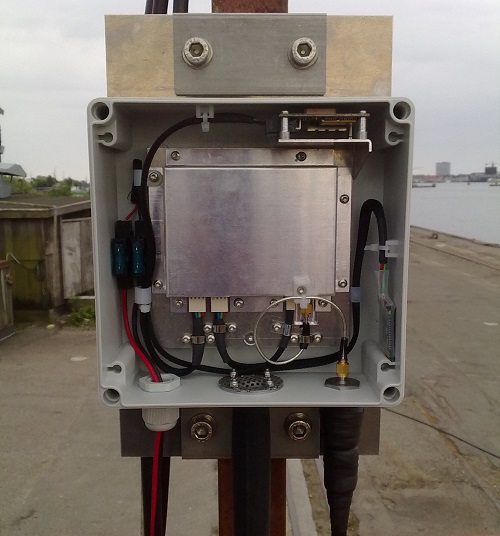

Version 2 mounted on sputnik:
Version 2 mounted on sputnik:
Transmit power:
~30W @ 12.0V
~40W @ 13.8V
~40W @ 13.8V
Beacon conditions for transmitting posistion:
If distance from last beacon is more than 300 meter
If heading changes more than 35°
If speed is above 2 km/h the beacon rate is between 1 and 5 minuts
If speed is below 2 km/h the beacon rate is 15 minuts
If heading changes more than 35°
If speed is above 2 km/h the beacon rate is between 1 and 5 minuts
If speed is below 2 km/h the beacon rate is 15 minuts
APRS.FI performance:
http://blog.aprs.fi/2011/06/new-map-viewers-record.html
Improvements for next time:
| Action | Status |
| Remove bugs from software | Done |
| Add Mic-E compression | Done |
| Move comment text to status text | Done |
| Add receiver to avoid collisions | Done |
| Higher mast for TX antenna | No longer of interrest |
| Improve coverage on Sjælland | Done |
| Improve coverage on Bornholm | Done |
